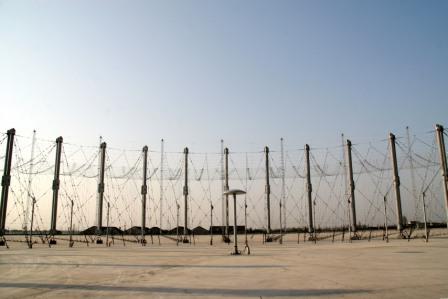

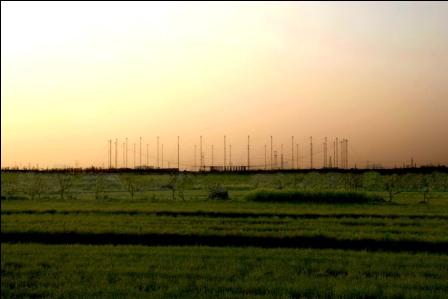

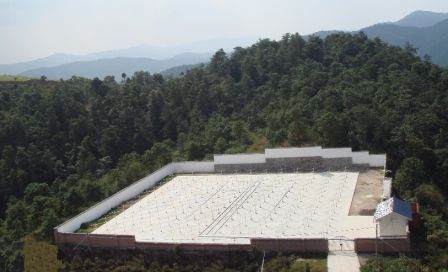

Brief:
This antenna is mainly used for time-issue, communication and navigation. Compared with other antenna
in the same frequency, it’s highly effective, broad bandwidth and smooth

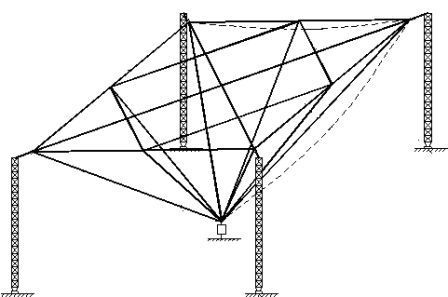

impedance curve. Antenna top shapes in square and 8 down-lead wires furled near
the ground and are connected to the transmitter.
As the broadcasting antenna , it has continuously been in use for 30 years,
with highly reliable performances.
Performance:
|
Electrical performance
|
|
Frequency
|
100kHz
|
|
Pulse power
|
2000kw
|
|
Direction
|
Horizontal all direction
|
|
Communication distance
|
4000km
|
|
Frequency band
|
2△f=7.0kHz
|
|
Polarization
|
Vertical polarization
|
|
Efficiency
|
≥60%
|
|
Product of BW and
|
2△f*
≥4kHz
|
|
Impedance variation range
|
-5﹪≤ △R/R ≤+10﹪
|
|
Mechanical performance
|
|
Field
|
423m×423m
|
|
Tower height
|
205m
|
|
Lightning protection
|
Yes
|
：
LF and MF
antenna product series

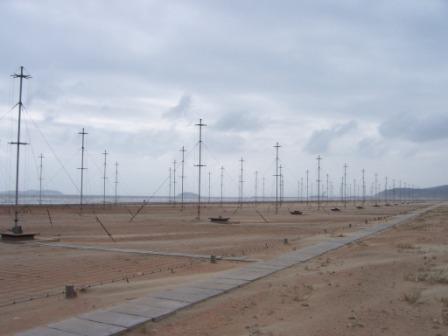

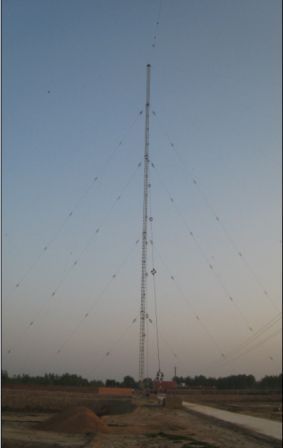

Brief

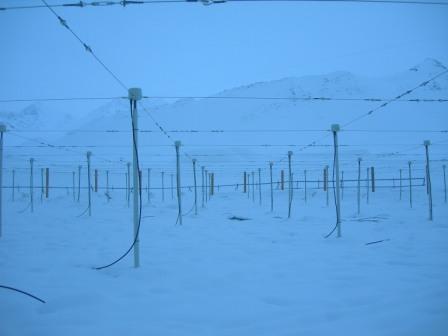

This antenna consists of
antenna-surface, bracing tower and ground mesh, and has been put in use as the
broadcasting antenna of Shangqiu station of National time-issue centre.
Performance
|
Electrical performance
|
|
Frequency
|
68.5kHz
|
|
Power
|
110kw
|
|
Direction
|
Horizontal all direction
|
|
Radiation power
|
≥50kw
|
|
Polarization
|
Vertical polarization
|
|
Efficiency
|
≥60%
|
|
Mechanical performance
|
|
Antenna size
|
Tower: h=250m
|
|
Ground mesh: r=300m
|
|
Lightning protection
|
Yes
|

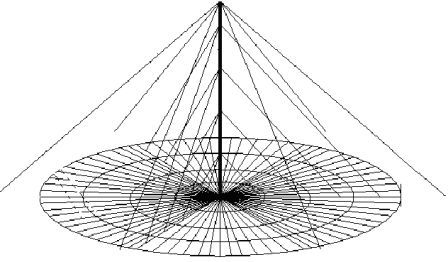

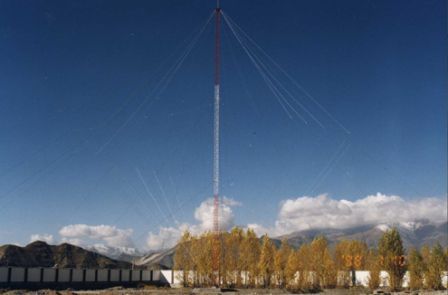

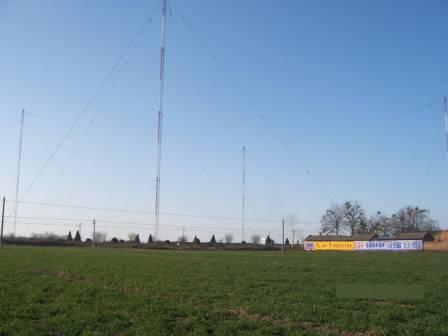

Structure illustration and Photos：
LF and MF
antenna product series
Brief
This is a long-wave electrical small
loop antenna，designed for the near field
measurement of long-wave signal, with the advantage of broadband and small size
and also flexible installation.
Performance：
|
Electrical performance
|
|
Frequency
|
10KHz-200KHz
|
|
Form
|
Loop(single)
|
|
Input impedance
|
100Ω balanced
|
|
Polarization
|
Vertical polarization
|
|
Sensitivity
|
≥-128dBmw
|
|
Mechanical performance
|
|
Size
|
About 0.5m
0.5m
|
|
Wind resistance
|
Normal at level 10, Not destroyed at
level 12
|
|
Temperature
|
-40℃～＋55℃
|
|
Relative humidity
|
≤95%
|
|
Lightning protection
|
Yes
|

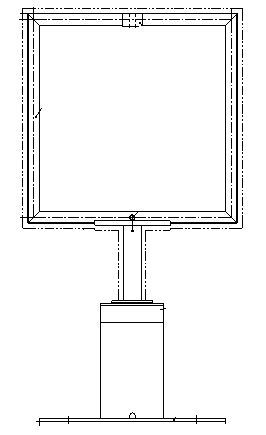

Structure
illustration：
LF and MF
antenna product series

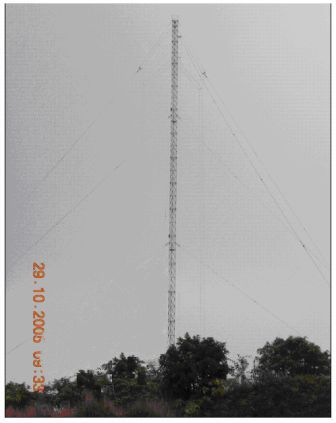

Brief
This broadband antenna is mainly used to monitor the
signals of medium wave, and also for broadcasting. It is supported by a 40m tower, and shaped as two cones. Ground
mesh can improve the efficiency.
Performance
|
Electrical performance
|
|
Frequency
|
530～1630KHz
|
|
Normal impedance
|
50Ω
|
|
Polarization
|
Vertical polarization
|
|
Gain
|
2dBi
|
|
SWR
|
≤2.5
|
|
Mechanical performance
|
|
Field
|
d=80m
|
|
Wind resistance
|
Normal at level 10, Not destroyed at
level 12
|
|
Lightning protection
|
Yes
|
LF and MF
antenna product series
Brief:
With the advantage of simple structure, this
antenna is very convenient for setting-up, and therefore is fit for medium wave
radio station, and is also broadly used in marine rescue, shipping
communication and so on. Antenna match unit and ground mesh are design to
improve the efficiency.
Performance:
|
Electrical performance
|
|
|
Frequency
|
480KHz-535KHz
|
|
Power
|
5kW
|
|
Impedance
|
50Ω
|
|
Polarization
|
Vertical polarization
|
|
Communication distance
|
0-1000km
|
|
SWR
|
≤1.5
|
|
Mechanical
|
|
Field
|
D=160m
|
|
Wind resistance
|
Normal at level 10, Not destroyed at
level 12
|
|
Lightning protection
|
Yes
|
Brief:

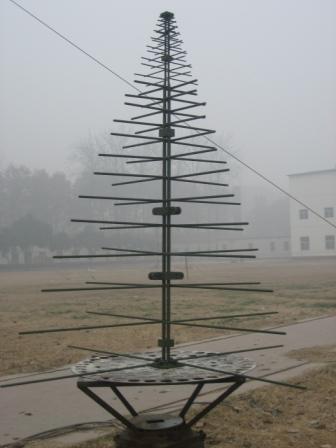

This is an antenna of cross double
polarized log-periodic dipole. In addition to the broad bandwidth, it can
receive or broadcast the signals of horizontal and vertical polarization simultaneously,
and both polarized signals are well isolated. The dipole can be disassembled
for setting up and transportation.
Performance:
|
Electrical
|
|
|
Frequency (MHz)
|
100-1350 or 80-1350MHz
|
|
Power(W)
|
≧50
|
|
Normal impedance(Ω)
|
50
|
|
Half-power beam width
|
≥60°(horizontal
face)
|
|
Gain (dBi)
|
≥6
|
|
SWR
|
≤2.5
|
|
Rotation control
|
Self-control or remote control;
Max rotation range
|
|
Sensitivity
|
1°
|
|
Speed
|
12°/s；4°/s (optional)
|
|
Mechanical
|
|
Size
|
Longitudinal length<2m;
Transverse length<1.8m
|
|
Wind resistance
|
Normal at level 6, Not
destroyed at level 10
|
|
Working Temperature
|
-45～+65℃
|
|
Storage temperature
|
-55℃～+70℃
|
Vertical pattern Horizontal
pattern
VHF/UHF antenna product series
Brief:
This antenna is a broadband
directional antenna for receiving. Mature technology makes light structure,
easy setting-up and steady performance within the planed band. It can serve in
many fields like communication and monitoring and so on.
Performance:
|
Electrical
|
|
|
Frequency (MHz)
|
80～1350
|
|
Normal impedance(Ω)
|
50W
|
|
RF interface
|
L16
|
|
Direction
|
Receive from fixed direction
|
|
Polarization
|
Leaner polarization
|
|
Gain dBi)
|
≥6
|
|
SWR
|
≤2.5
|
|
Mechanical
|
|
Longitudinal length (m)
|
≤1.9
|
|
Wind resistance
|
Level 11
|
|
Weight (kg)
|
≤10
|
|
Temperature
|
-45～+55℃
|
Vertical pattern:
Horizontal
pattern:
VHF/UHF antenna product series
Brief:
This antenna is a conjunction of an
active whip antenna and a biconical antenna. Through signal synthesizer, it can
fulfill the need of super broadband signal’s receiving. The main feature is
small size and lightweight. With sucker and
triangle rack, it can be placed on the ground, table or any flat place.
Performance:
|
Electrical
|
|
Frequency
|
20MHz-6GHz
|
|
Normal impedance（Ω）
|
50
|
|
Direction
|
Omnidirectional
|
|
Polarization
|
Vertical polarization
|
|
Gain （dBi）
|
8-10
|
|
SWR
|
≦3
|
|
RF interface
|
L16
|
|
Feed
|
DC 8V
|
|
Mechanical
|
|
Size
|
0.8m
|
|
Wind resistance
|
Normal at level 8, Not
destroyed at level 10
|
|
Temperature
|
-40ºC～60ºC
|
|
Thunder
|
Yes
|
VHF/UHF antenna product series
Brief:
This product can work smoothly in fullband with high radiation
effectiveness and wide beam, based on the dipole board structure. The whole
array is light but strong against wind, and easy to assemble. It can be set up
fixed on the tower
of FM broadcasting, or
rapidly set up on a mobile platform.
Performance:
|
Electrical
|
|
|
Frequency (MHz)
|
87～108
|
|
Power(kW)
|
≥3
|
|
Normal impedance(Ω)
|
50
|
|
Half-power beam width
|
Horizontal≥70°.
Vertical ≥45°
|
|
Polarization
|
Horizontal
|
|
Gain (dBi)
|
≥10
|
|
SWR
|
≤1.2
|
|
RF interface
|
L36—J
|
|
Mechanical
|
|
Size
|
4.8m×1.8m
|
|
Wind resistance
|
17m/s
|
|
Temperature
|
-20℃～+55℃
|
|
Humidity
|
≥95%
|
Vertical pattern:
Horizontal
pattern:
VHF/UHF antenna product series

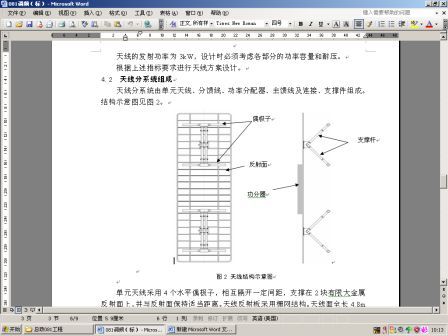

Brief:

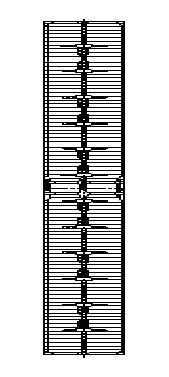

This
product consists of antenna units, branch feed, power distributor, main feed,
and supporting parts. With the broadband and high gain and efficiency, it can
be used as the UHF band TV broadcasting antenna.
Performance:
|
Electrical
|
|
|
Frequency (MHz)
|
470～570
|
|
Power(kW)
|
Peak power≥10
|
|
Normal impedance(Ω)
|
50
|
|
Half-power beam width
|
≥70°
|
|
Polarization
|
Horizontal
|
|
Gain (dBi）
|
≥15
|
|
SWR
|
≤1.2
|
|
RF interface
|
L36—J
|
|
Mechanical
|
|
Size
|
3.4m×0.48m
|
|
Wind resistance
|
≥level 12
|
|
Temperature
|
-20℃～+55℃
|
|
Humidity
|
≥95%
|
Vertical pattern:
Horizontal pattern:
VHF/UHF antenna
product series

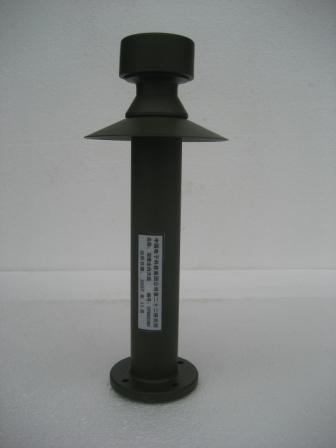

Brief:
Conical antenna’s upper part is a
cylinder, below part is two cones connected. Vertical polarization, max power 5
W, can be utilized as mobile communication and signal monitoring. Antenna is
fixed easily.
Performance:
|
Electrical
|
|
|
Frequency (MHz)
|
1000～3000
|
|
Normal impedance(Ω)
|
50
|
|
Direction
|
Omnidirectional, round
|
|
Polarization
|
Vertical
|
|
Gain (dBi)
|
0～2dB
|
|
SWR
|
≤2.5
|
|
RF interface
|
L16
|
|
Mechanical
|
|
Mechanical interface
|
Flange plate
|
|
Wind resistance
|
Level 11
|
Vertical pattern:
VHF/UHF antenna
product series
Brief:
As the result of asymmetrical
structure, this antenna is very directional. Omnidirectional in horizontal plane
and the
beam covers -15～+45°in vertical plane.
Performance:
|
Electrical
|
|
Frequency (MHz)
|
30～500
|
|
Normal impedance(Ω)
|
50
|
|
Polarization
|
Vertical polarization
|
|
Axial ratio(dB)
|
≤3
|
|
Gain (dBi)
|
≥0dB
|
|
Mechanical
|
|
Radius (m)
|
≤0.8
|
|
Length (m)
|
＜ 3
|
|
Wind resistance
|
23m/sec
|
Horizontal pattern:
VHF/UHF antenna product series

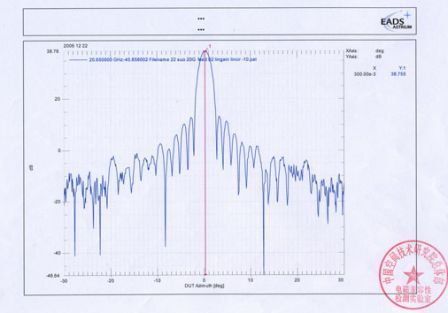

Performance
character
This antenna is used to receiving and
sending of satellite communication on Ku band.
